Production Capacity.

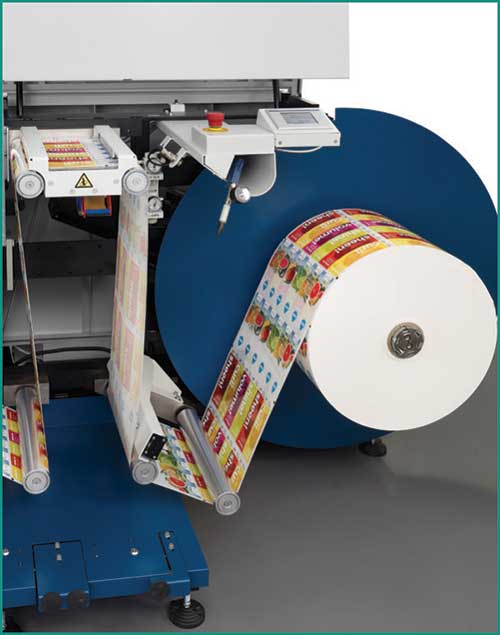

With a 1m (40”) diameter roll unwind capable of handling up to 340mm (13.4”) wide media and the widest print width (333mm or 13.11”) of any Kyocera print head based label press, the N610i can process up to 3000 linear metres (9842 linear feet) or 1000m2 (10760 ft2) of material per hour in high quality mode.
Printing At Speed.
The High Quality mode can print up to 92% of Pantone colours plus high opacity white at 50m/ min (164ft/min). In the new Rapid Mode, the N610i is capable of printing at 75m/min (246ft/ min) with optimised performance at 70m/min (230ft/min) which will still accurately reproduce up to 90% of the Pantone range, delivering unparalleled levels of quality and performance.
 |
Waste saving.
The Domino i-Tech WebRev manages substrate type changes and unplanned stoppages through a web reverse function. For these events, even with in-line finishing, web waste can be limited to less than 2m (6ft) and manual intervention minimised.
It’s Just So Simple.
Ink jet technology is non-contact, with few moving parts, no printing plates, no drums, no blankets and no complex maintenance programmes. The time to change from printing one job to another is instantaneous with practically no substrate waste.
 |
Ink Circulates In Every Part of the White Ink System to Provide the Ultimate Reliability.

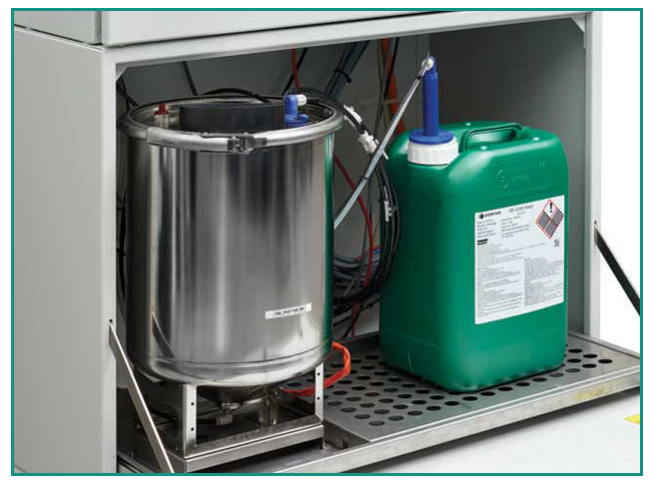

Domino i-Tech UltraMix ink tank continuously circulates the white ink ensuring the pigment does not settle, but stays in suspension at all times, providing consistent results and enhanced reliability.
 |
| Domino N610i White i-Tech UltraMix Ink Tank |

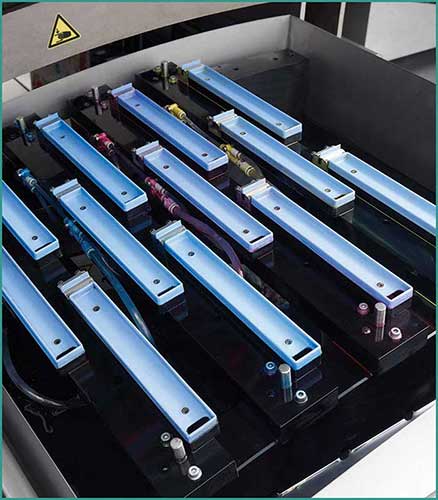

The Domino heavily pigmented i-Tech TrapLess print bar has a unique design removing all potential ink traps where pigment can conglomerate. This helps to avoid the risk of early life nozzle failure that would impact print quality and reliability.
 |
| Domino N610i White i-Tech TrapLessTM Print Bar |
Jets That Keep Jetting.
Domino’s quality controlled UV inks are constantly circulated around the print head by the innovative i-Tech ActiFlow ink circulation system, even when printing has stopped. ActiFlow degasses the ink, preventing air bubbles forming, which can impact nozzle performance.
Automated maintenance.
The revolutionary i-Tech CleanCap automated print head cleaning and capping technology is a consistently controlled process which reduces manual operator intervention meaning that daily manual head wiping is now a thing of the past!
The N610i White provides the highest opacity (at 72%) screen-like, highimpact appearance, but with the operational flexibility of a digital process.
Silk Screen-Like Printing Replacement With a Difference.
There are no screens to be produced in order to get that opaque bold two dimensional textured effect typically only possible with screen printing technology. N610i White is clean to operate with almost no maintenance, efficiently providing this high impact printing in any quantities with no waste or time required to change from printing one job to another.
 |
Make Your Labels Stand Out From the rowd.
- Add value-Offer premium product branding with enhanced shelf appeal
- Competitive advantage-Win additional business based on unique textured printing capability
- Creative designs - Endless textured designs on part or all of the label
- Cost-effective-Can be used as a replacement for screen printing or as a substitute for premium textured substrates
- Personalisation-Combine with variable data printing for completely unique product offerings
 |
Textures by Domino.
Increased shelf edge appeal is achieved due to the highly reflective nature of the print. Unique digital textured effects can open up new applications for Domino N610i press owners. Unique textured label printing is achieved at speeds up to 50m/min (164ft/min). This feature can also be used to substitute premium priced textured substrates with Domino’s textured print on standard paper, PP and PE materials.
 |
Designed to deliver the widest gamut whilst also delivering the key mechanical features and benefits of ink jet over toner based digital printing technologies. Provides superior adhesion with unparalleled resistance to heat & cold, sunlight, chemical and saline attack and abrasion to maintain the highest quality through the life of the final product.
Our Colour Range.
In today’s fast evolving retail marketplace, the importance of colour in product packaging cannot be over-emphasised. The N610i provides brand owners and designers the scope to create designs with a far wider colour gamut cost-effectively.
Our seven colour press can achieve in excess of 92% of the Pantone® colour range without the need to make plates or the complexity of mixing spot colours.
 |

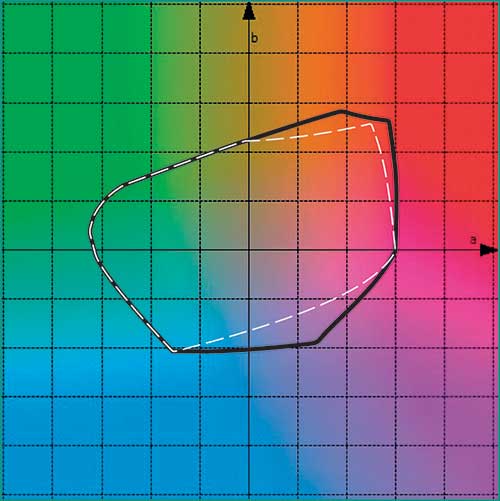

| White dashed - standard gamut (CMYK), Black - extended gamut (CMYKOV) |
 |
| UV90 colour gamut |
Provides high resistance to:
 |
Adhesion and Abrasion.
Although vital for industrial applications, adhesion and abrasion are important for all printing applications to ensure the finished goods survive the journey to the shelf in optimum condition and then offer the longest possible shelf life. Tested using the industry standard cross hatch and tape tests, the Domino UV90 inks maintain full adhesion on the widest range of substrates and remain highly abrasion resistant to maximise shelf appeal. This degree of adhesion removes the need to pre-coat or varnish most substrate types, saving significant time and money.

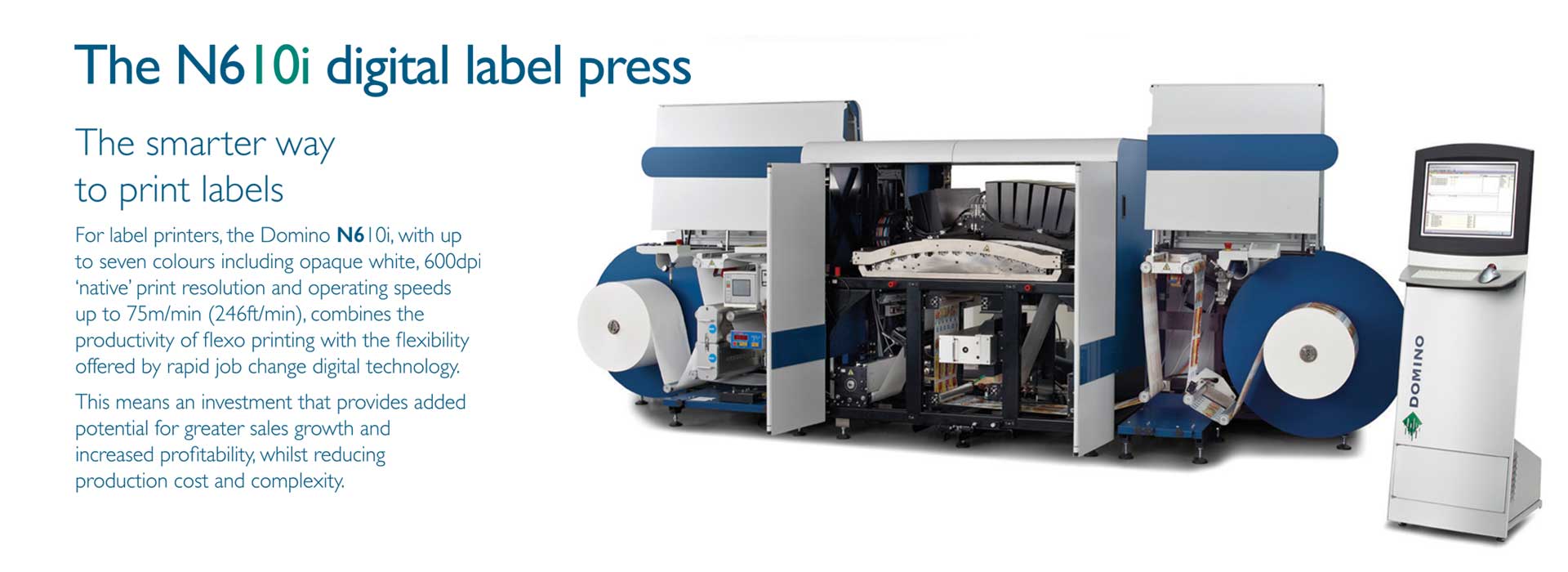

The Domino N610i in reel-to-reel format is the ultimate label press providing total flexibility for printing short runs or where multiple finishing and die cut changes downstream are required.
Available in 4, 5, 6 and 7 colour options and capable of delivering consistent print quality day-in, day-out, the N610i delivers the highest production capabilities whilst offering total flexibility.
 |
 |

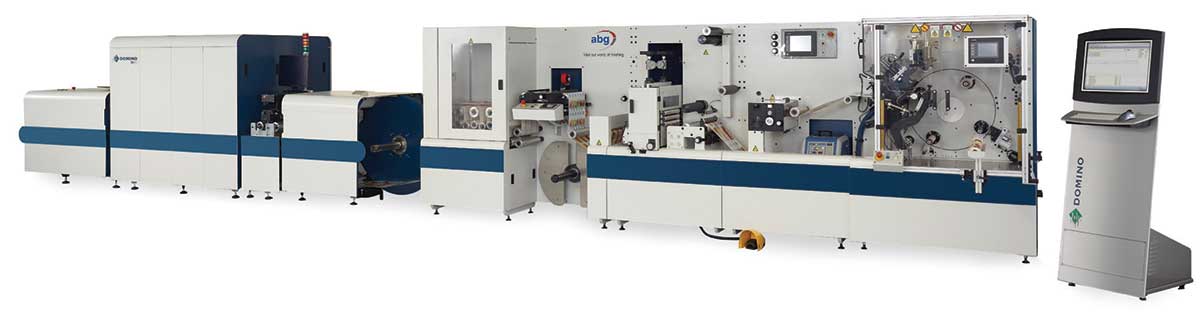

Domino N610i with near line finishing from ABG
The Domino heavily pigmented i-Tech TrapLess print bar has a unique design removing all potential ink traps where pigment can conglomerate. This helps to avoid the risk of early life nozzle failure that would impact print quality and reliability.

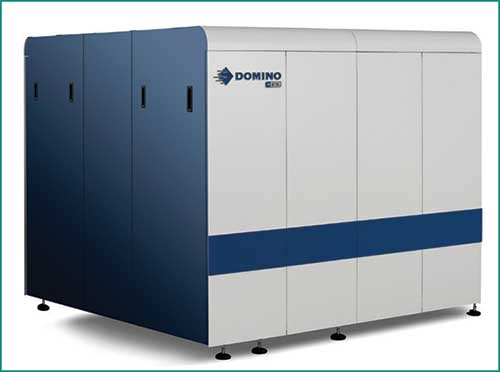

N610i Hybrid

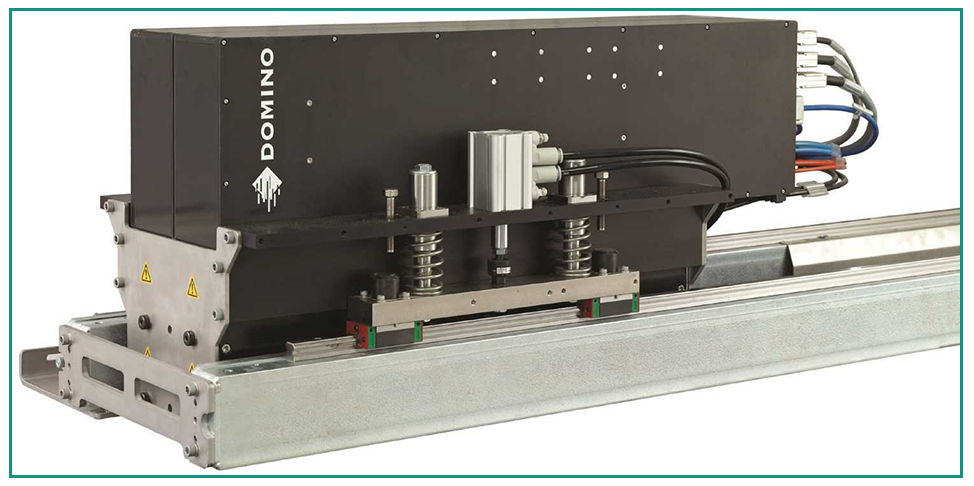

Including the N610i Integration Module.

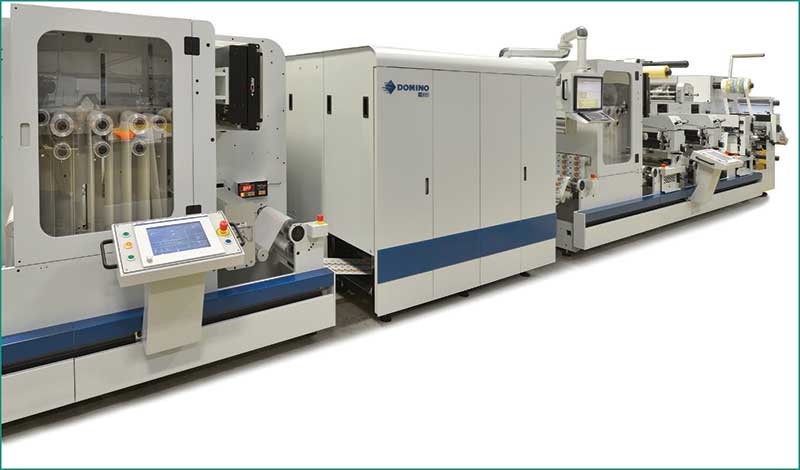

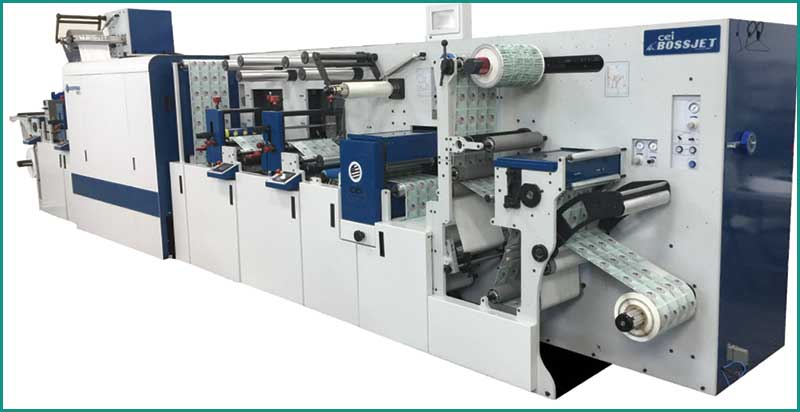

Can be supplied as part of a fully integrated hybrid press working with partners such as ABG, CEI, Delta Industries, Lombardi, MPS & OMET.
You can include flexo stations before and after the N610i module as well as screen and foiling stations. It meets a wider range of product design needs, but still provides digital quick job change, and is well suited for multiple SKUs. High impact labels delivered in an efficient single process with white roll in, to final finished product output.
 |
Combined with the widest range of analogue printing and finishing solutions, the Domino N610i Integration Module is rapidly becoming the defacto standard for converters looking for maximum flexibility and future-proofed production capabilities.
 |
Through the use of web buffers and i-Tech WebRev, even with in-line finishing or in hybrid formats, waste associated with a substrate change or unplanned stoppage can be limited to 2m (6ft).
 |

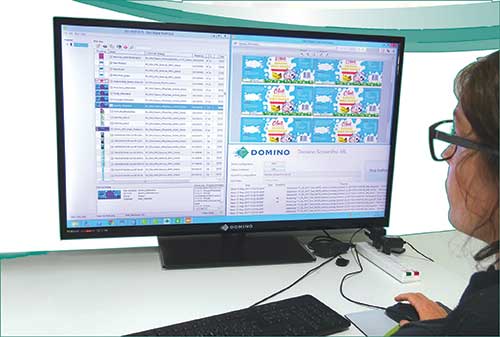

The new Domino Workflow combines the industry standard Esko Digital Front End v2.0 (DFE) with a new high speed Domino Screen Pro screener and Job Definition File (JDF) server to provide a highly configurable workflow. It can be used in a fully automated mode, in a manual control mode and in combination with the Domino Application Programming Interface (API) for a unified hybrid press or in-line finishing solution.
The Domino Workflow is built to maximise the latest Adobe PDF Print Engine (APPE) and offers full support for the industry standard PDF/VT variable data printing (VDP) file format. It is also fully JDF/JMF compatible ensuring full integration with Management Information Systems (MIS).
 |
 |
