Digital Aqueous Inkjet Corrugated Press

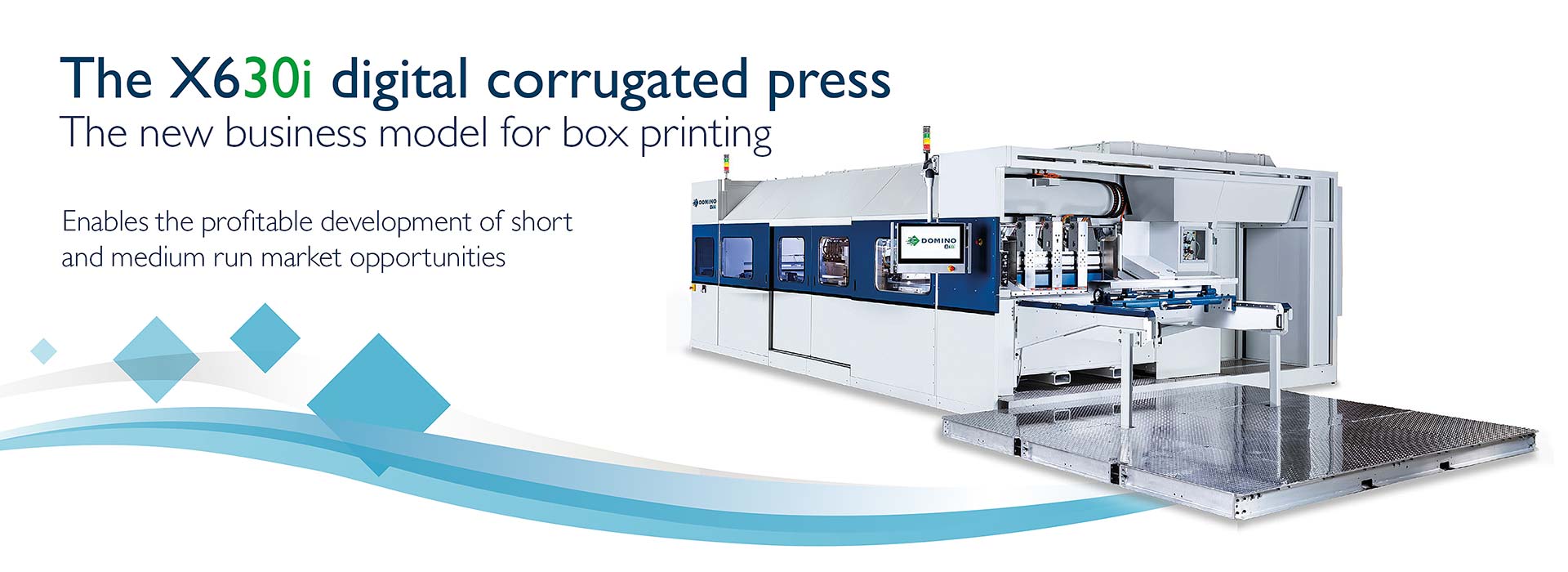

Here's a sneak peek of the Domino X630i. The NEW Business Model for Corrugated Box Printing.
![]() |
![]() |
The X630i is based on Domino’s proven Generation 6 ink jet platform, with approaching 1,000 global industrial ink jet installations. With over 40 years of ink jet experience, the X630i includes truly unique Domino intelligent Technology components, combining to create a system altogether more flexible and reliable. The most versatile Domino AQ95 aqueous ink set, provides both food packaging compliance and the capability for printing on coated corrugated board types.
The X630i uses Domino’s latest AQ95 aqueous ink set. This uniquely combines outstanding jetting performance with the capability to print on both uncoated and coated corrugated substrates, for a wider range of applications, and without the need to apply a primer or a bonding agent
Ideal for:
- Shipping boxes 3 Shelf-ready packaging
- Point of purchase display
- Point of sale displays
- Free standing display units
![]() |

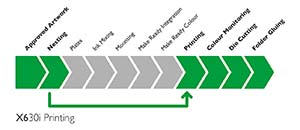

When you remove the need for printing plates, job set-up time and product waste, you can start thinking short run jobs are attractive.
Let’s make production efficient
Does short run work tie-up your capacity with regular job changes, time coordinating printing plates and manpower to be on the line at the right time, extra order processing? With the Domino X630i, multiple jobs are planned in the pre-press department, and then can be run continuously without any stoppages – in every hour you can produce many different jobs and SKUs.
Who wants profit?

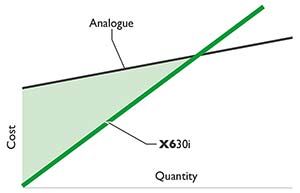

The Domino X630i reduces the cost to do a job change, enabling you to rebalance production between equipment to drive up efficiency, output is then increased, costs reduce – your profit margins improve.
![]() |
|---|
Have you tried and then failed to win attractive business because you had no points of difference?
Offer as many variants as they like!
Does your costing model force customers to simplify their requirements, for example, printing all their corrugated packaging with the same branding to help your efficiency, when they wanted different branding for each SKU? Digital printing means product variants no longer attract a set-up cost premium - you win new business and attract higher value production.
Reduce your lead time and minimum order quantities
How many customers would prefer shorter lead times and smaller minimum order quantities? – The Domino X630i makes this all possible – it will grow your business.
But I want longer run work?
When you take on a customer’s perhaps less attractive short run work, it is an incentive for them to give you “all” their work, growing both digital as well as your longer run conventional print production.
![]() |
The Domino AQ95 ink set combines the ability to reliably print on to coated and uncoated corrugated topliners, but without the need of a primer or separate bonding agent, while at the same time, still providing food packaging compliance. Match that!
intelligent Technology to print on coated materials

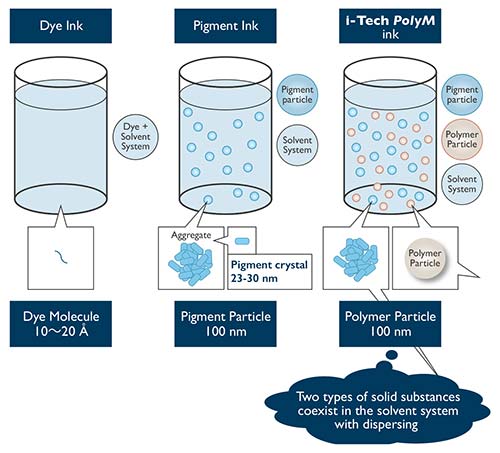

Traditional aqueous inks consist of either dye or pigment combined with a solvent, but this does not achieve both reliability and adhesion required for coated materials. Priming and bonding agents can be used to enhance performance, but with added complexity and cost.
Domino i-Tech PolyM is a unique micro polymeric particle component included in the AQ95 inks, allowing reliable printing onto coated substrates without the need for separate primer or bonding agents.
![]() |
|---|
![]() |
|---|
![]() |
|---|
Press Modules
• Feeder
• Transfer In
• Board Cleaning
• Board Inspection
• Print Section
• Transfer Out
• Dryer
------------------
Technology
• Piezo Drop on Demand ink jet
• Infrared drying
------------------
Printing Speed
• Up to 50m/min (164ft/min)
• Up to 75m/min (246ft/min)
------------------
Image Resolution
• 600dpi native including 3 greyscales
------------------
Media-Sheet Size Range
• 508 x 762 to 1,600 x 3000mm (20 x 30 to 63 x 118 inch)
------------------
Image Format
• Maximum Print Area 3000mm (118”) x 1345mm (53”)
------------------
Media Type
• Coated, Uncoated & Kraft
• Sheet caliper: E to BC fluted corrugated
------------------
Inks
• Cyan, Magenta, Yellow, Black
• Aqueous Inks
• EuPIA, Nestle, Swiss compliant
------------------
Workflow
• ESKO DFE 2.2.3
• Colour Pilot 18.1
• Domino ScreenPro HS
• Step and repeat, colour management, cropping, edge to edge printing, saturation control, and hot folders
------------------
File Formats
• PDF Versions: 1.3; 1.4; 1.5; 1.6; 2.0; PDF/X-1a or PDF/X-3 and PDF/VT
------------------
