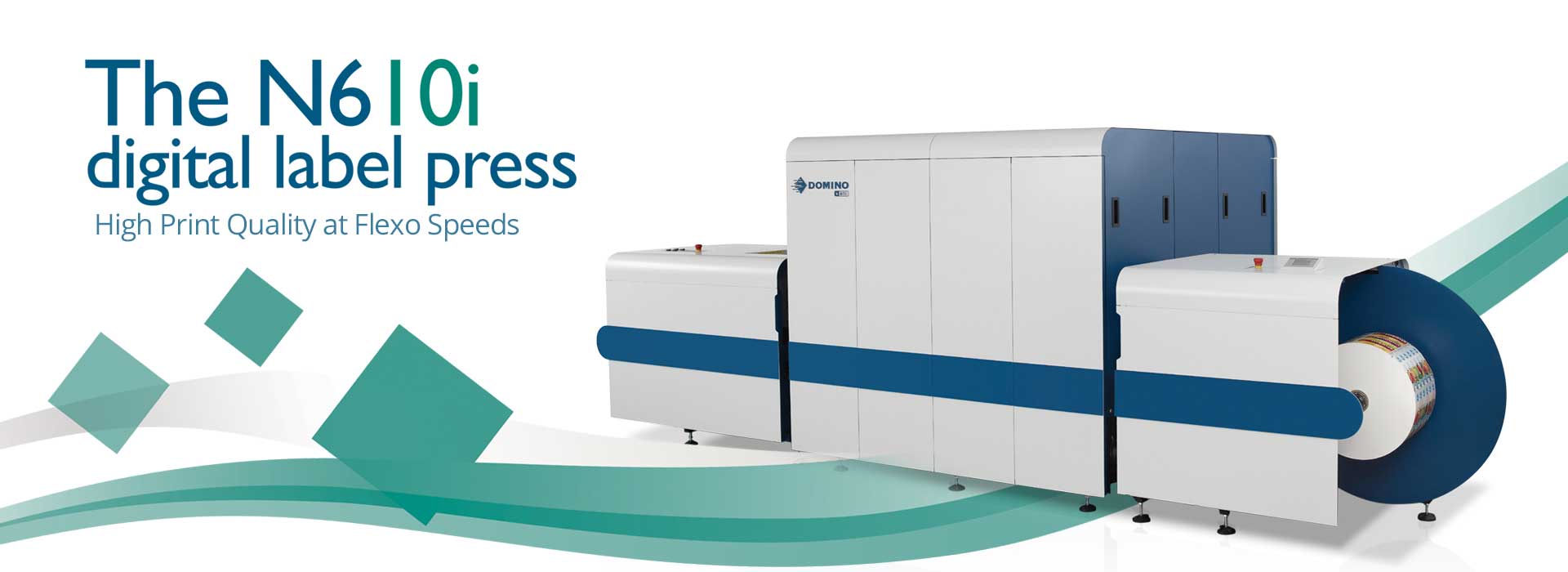

Technology
• Piezo Drop on Demand ink jet
------------------
Printing Speed
• Up to 50m/min (164ft/min) High Quality Mode
• Up to 75m/min (246ft/min) Rapid Mode
------------------
Image Resolution
• 600dpi native including 4 greyscales (nominal 1340dpi)
------------------
Image Format
• 333mm (13.11”) maximum print width
------------------
Web Width
• 200mm (7.9”) to 340mm (13.4”)
------------------
Media Type
• Polyethylene, polypropylene and paper self adhesive label stock
• Selected unsupported materials (films)
------------------
Inks
• UV curable Cyan, Magenta, Yellow, Black, Orange, Violet and White
------------------
Unwind/Rewind
• 1000mm (40”) diameter
• Maximum roll weight: 300kg (661lbs)
• Servo driven tension control
• Corona treatment module
• Web cleaning
• Web guide module
------------------
Workflow
• ESKO DFE v2.0
• Domino ScreenPro & ScreenPro HS
------------------
Central Print Module
• Anti-static control
• Up to 7 colour print section
• UV LED pinning
• UV curing module
------------------
Options
• In-line finishing interface
• In-line inspection
• Variable data printing
• Chilled roller
------------------
Dimensions
• 5.614m (L) x 1.735m (H) x 1.925m (W) (1.0m minimum clearance required)
• 18.5ft (L) x 5.9ft (H) x 6.4ft (W) (3.3ft minimum clearance required)
• Ink cabinet: 1202mm (L) x 807mm (H) x 520mm (W) 47.3” (L) x 31.8” (H) x 20.5” (W)
------------------
Weight
• Unwind: 600kg (1323lbs)
• Printing section: Nominal 1500kg (3307lbs)
• Rewind: 400kg (882lbs)
• Power cabinet: 350kg (772lbs)
• Ink supply unit: 200kg (441lbs)
------------------
Services
• Three phase power - one 380-420V drop
• Compressed air - one drop @ 6-8 bar (90-115psi), clean and dry
------------------
Environment
• Optimal temperature range 20-22˚C (68-72°F)
• Maximum temperature range 20-25˚C (68-77°F)
• Ink storage 20-25˚C (68-77°F)
• Optimum humidity range 40-60%
• Dust controlled environment preferred

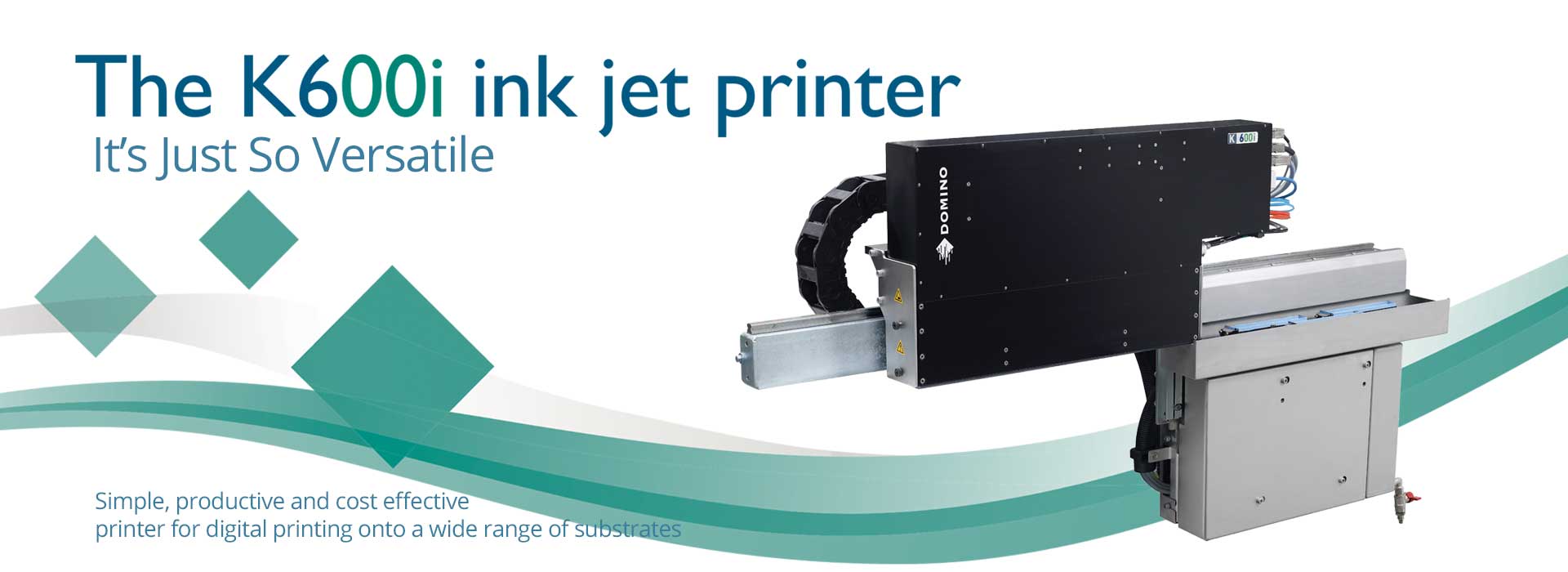

Operational Capability
• Maximum line speed Standard 37.5 – 150 m/min (123 – 492 ft/min)
• Maximum line speed Dual 150 – 200 m/min (492 - 650 ft/min)
• Maximum line speed Digital Foil 75m/min (246ft/min)
• Maximum line speed Digital White 4 drop sizes: 50m/min (164ft/min); 3 drop sizes: 75m/min (246ft/min)
• Print resolution 300dpi - 600dpi - 1200dpi options
• Nominal drop sizes 6, 7, 11, 14pl (14pl drop only at reduced speeds)
• Image width range 108mm (4.25”) to 782mm (30.81”)
• Nominal media to print head distance 1.0mm (0.04”)
• Media Coated and uncoated paper, foil and plastic
------------------
Ink System
• Ink Supply 1 - 10 litres (ink dependent)
• Ink Type UV Curable / LED Curable / Aqueous / Foil Adhesive / White Heavily Pigmented
------------------
Print Capability
• Editor GT:
Fonts: Windows® True Type, Adobe, OCR,
• Barcodes:
- Australian Post Custom, Australian Post Redirect, Australian Post Reply Paid, Australian Post Routing, CodaBar 2 widths, Code 11,Code 2 of 5 Data Logic, Code 2 of 5 IATA, Code 2 of 5 Industry, Code 2 of 5 Interleaved, Code 2 of 5 Matrix, Code 2 of 5 Standard, Code 39, Code 39 (ASCII), Code 93, Code 93 (ASCII), Code 128, Code 128A, Code 128B, Code 128C, DPD Code, DP Identcode, DP Leitcode, EAN13, EAN13P2, EAN13P5, EAN14, EAN8, EAN8P2, EAN8P5, EAN128, Flattermarken, GS1-128, GS1 DataBar,GS1 DataBar Expanded,GS1 Data Bar Expanded Stacked, GS1 DataBar Limited, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 Data Bar Truncated, ISBN, Italian Postal, Japanese Postal, KIX, Korean Postal, LOGMARS, MSI, NVE-18, Pharmacode One-track, Pharmacode Two-track, PLANET 12, PLANET 14, Plessey, Plessy Bidirectional, PZN, Royal Mail 4State, SSCC-18,Telepen,Telepen Alpha, UCC/ EAN 128,UPC 12,UPC 25,UPC A,UPC-A P2,UPC-A P5,UPCE,UPC-E P2,UPC-E P5, USPS Intelligent Mail Barcode, USPS PostNet5, USPS PosNet6,USPS PostNet9,USPS Post-Net10,USPS PostNet 11,USPS PostNet12.
- 2D Codes: Data Matrix, MicroPDF417, PDF417, PDF417 Truncated, QR-Code, Quantrum-code
- Graphics: .bmp, .pcx, .tif, .jpg, .gif, .pdf
- Editor™ RIP: IPDS, AFP data streams & PDF files
------------------
Key Dimensions
• Conduit length - main enclosure to print head 4m (13’) for1x1 module, 5m (16’) for 1x2 or 1x3 module, otherwise 4.25m (14’)
• Conduit length - main enclosure to flush bottle 4m (13’)
• 1x3 head print bar 1330w x 354.4d x 705.4h mm (height dimension excludes conduit)
• Small-size 10L ink supply box 640w x 441d x 425h mm (dimensions exclude conduit radius*)
• Mid-size 10L ink supply box 800w x 400d x 1810h mm (dimensions exclude conduit radius*)
• Flush holder 234w x 234d x 360h mm (dimensions exclude air regulator and conduit radius*)
------------------
Services
• Electrical
- K600i 110-240v AC50-60Hz 10A (auto ranging)
- UV System Operation dependent, normally 380-420v three phase drop
- Compressed Air 6-8 bar clean dry supply
------------------
Environment
• Optimum temperature range 20-30ºC (68-86ºF)
• Optimum humidity range 40-60%
------------------
Ancillary Equipment
• Print head guarding, UV dryer, LED UV pinning, Web cleaner, Web guide, Anti-static bars, Mail base, Web extension, Reel to reel system, Arched roller section, Corona treatment.
 |
 |
